Landfill GCLs 6m Width Natural Sodium Bentonite Needle Punched Membrane for Waterproofing

Name: Landfill GCLs 6m Width Natural Sodium Bentonite Needle Punched Membrane for Waterproofing
Brand: TAIAN HONGYUAN
Price: 1.88 USD

Wholesale Landfill GCLs 6m Width Natural Sodium Bentonite Needle Punched Membrane for Waterproofing from china suppliers

Warranty : Lifetime

After-sale Service : Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Return and Replacement

Project Solution Capability : graphic design, 3D model design, total solution for projects

Application : Villa, Landfill

Design Style : Modern

Place of Origin : Shandong, China

Brand Name : TAIAN HONGYUAN

Model Number : GCL- bentolelo

Type : voltex ds, Other Earthwork Products

weight : 3500g-6500g

Length : 5-50m

Certificate : CE/ISO9001 ISO14001

Packaging Details : waterproof film

Port : Qingdao

Supply Ability : 10000 Square Meter/Square Meters per Day

MOQ : 5000 square meters

Price : $1.88/square meters >=5000 square meters

Contact Now

Products Description

Landfill GCLs 6m Width Natural Sodium Bentonite Needle Punched Membrane for Waterproofing

WHAT IS BENTONITE GEOTEXTILE?

It is composed of 3 levels. The upper level and the lower level are woven geotextile and non woven textile.
The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special
processing.
This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.
GCL can be applied separately, or combined with high density polyethylene (HDPE)

Product Paramenters

items	GCL-3	GCL-4	GCL-5	Customized	Comments
weight	3000g-7000g/m2	3000g-8000g/m2	3000g-10000g/m2	3000g-10000g/m2	as request
water content	8-12%	8-12%	8-12%	8-12%
thickness	5-7mm	5-8mm	5-15mm	5-15mm	as request
Swell index of bentonite granular	≥24ml/2g	≥24ml/2g	≥24ml/2g	≥24ml/2g	as request, from 24-28 ml/2g
nonwoven geotextile	180-350g/m2	180-350g/m2	180-300g/m2	180-350g/m2	weight
nonwoven geotextile		Polypropylene or polyester	Polypropylene or polyester	Polypropylene or polyester	Polypropylene or polyester	raw materials, percentage of PP can be customized
Polypropylene woven geotextile	110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2	110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2	110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2	110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2	Usual stock is 130g/m2 and other weight needs to be customized
Polypropylene woven geotextile		Circular or plain	Circular or plain	Circular or plain	Circular or plain	woven method
tensile strength	≥600N/100mm	≥800N/100mm	≥800N/100mm	≥600N/100mm
peel strength	≥40N/10cm	≥50N/10cm	≥40N/10cm	≥40N/10cm
Permeability coefficient(cm/s)	≤5.0×10-11	≤5.0×10-11	≤5.0×10-11	≤5.0×10-11

Product characters of geosynthetic clay liners

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity

ADVANCED PRODUCTION LINES of bentonite clay liners

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.

BENTONITE POWDER OR GRANULES FOR SEALING

1.Bentonite sealing powder or granules: It is the identical to the bentonite grain of the GCL used as the lap between GCL.
Package: 50kg per woven geotextile bag.

Applications of geosynthetic clay liners?

1.waterproof for rooftop garden,basement and so on;

2.waterproof forunderground,railway,city highway,oil drilling and so on;

3.Anti-seepage project of mud and stone reinforce

4.desert and environment improvement,trash stuff zone,artificial lake and artificial sight and so on; 5.reservoir,dam,irrigation channel and so on;

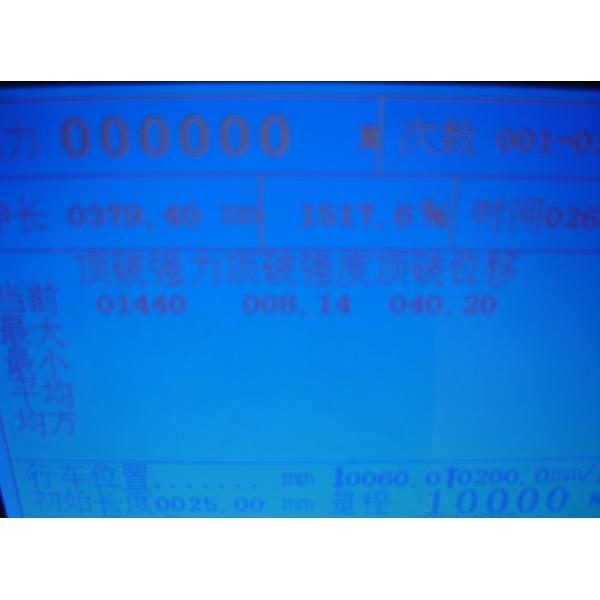

CBR TEST REPORT OF GEOSYNTHETIC CLAY LINERS

It is tested based on the standard of ASTM D6241

TENSILE STRENGTH TEST OF GEOSYNTHETIC CLAY LINERS

it is tested based on the standard of ASTM D6768

Product packaging

projects

Company Profile

Exhibition

Marketing Campaign

Landfill GCLs 6m Width Natural Sodium Bentonite Needle Punched Membrane for Waterproofing Images
